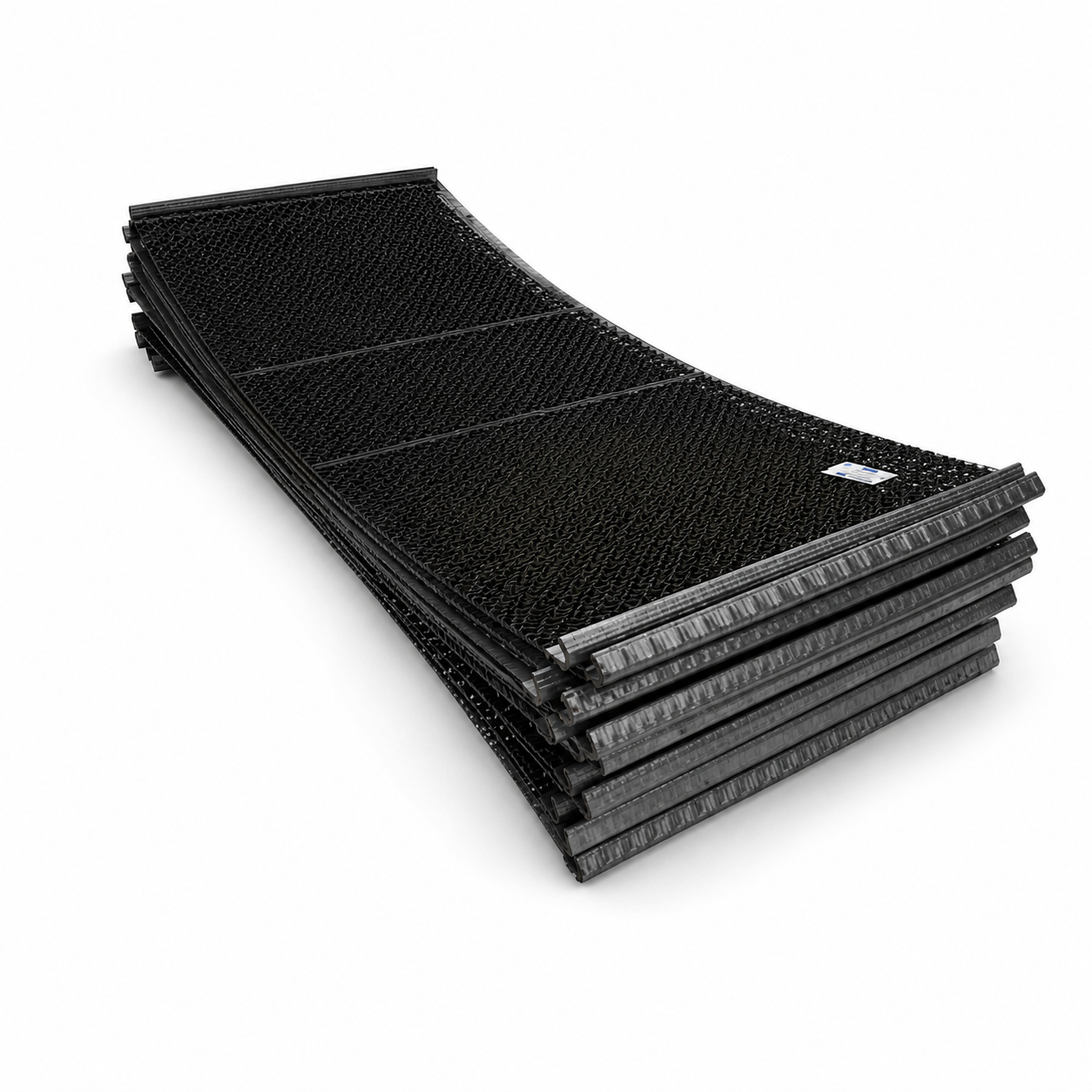

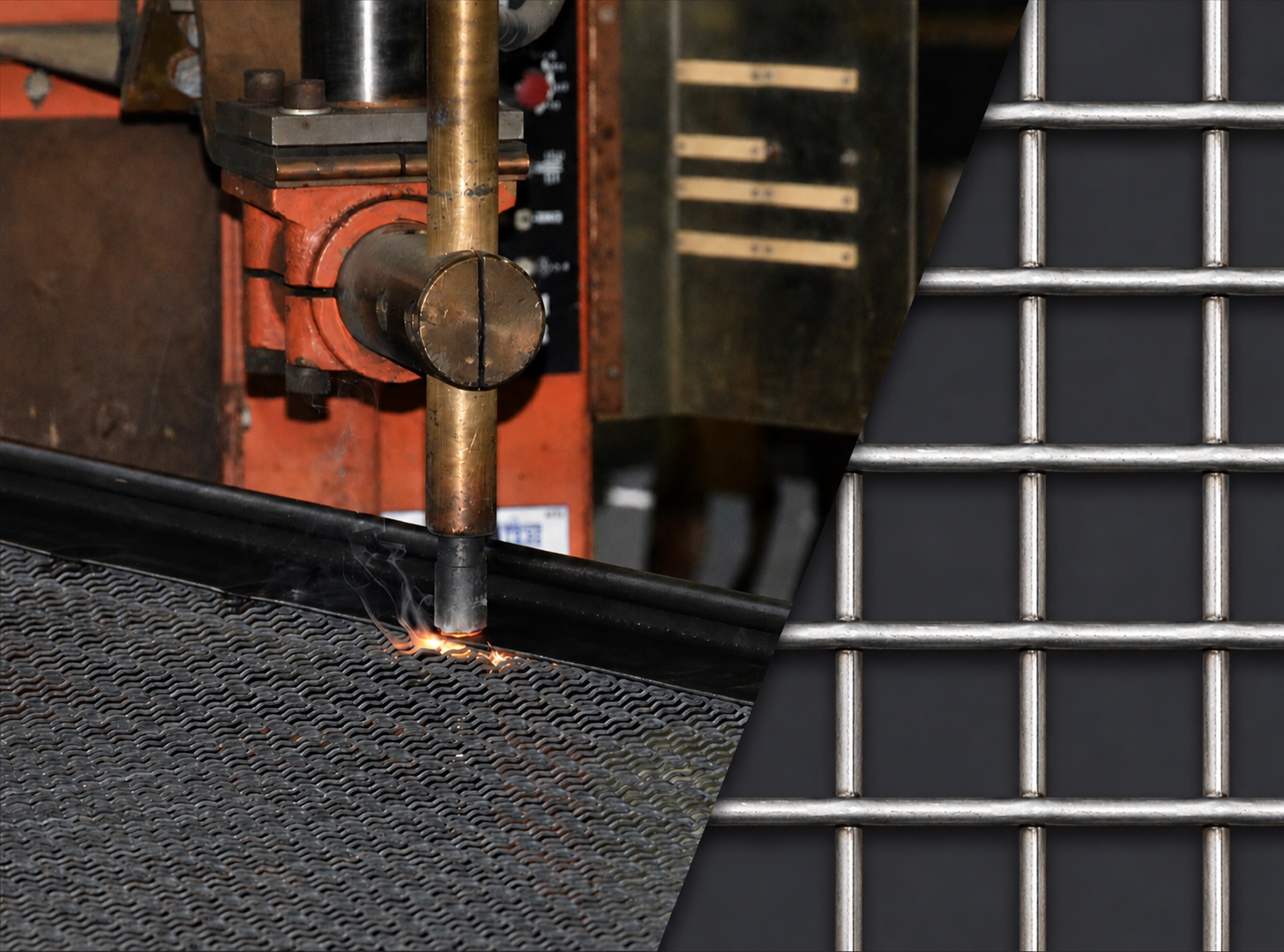

Wire screens, square holes
Enter your custom request, e.g. 30×16×2500
Wire screens

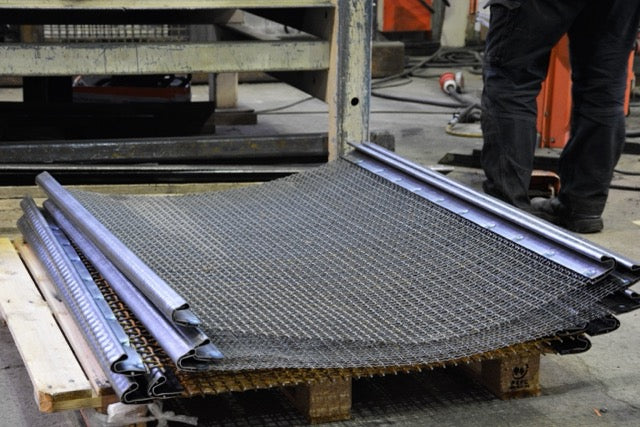

Tensioned and self-supporting screens are manufactured to order with the desired aperture size and according to the screening machine dimensions.
In addition to steel wire screens, Suomen Kulutusosa also supplies perforated steel plate screens as well as polyurethane and rubber screening media.
Perforated steel plate screens are manufactured according to the customer’s requirements. The size and shape of the screen are made to match the dimensions of the screening machine. The size and shape of the apertures can be freely selected.
Wire screens, square holes
Enter your custom dimensions and additional requirements
Additional information
|
90° bend |
90° welded angle |
|---|---|
|
U-bend |
0° angle |
| Mesh/Wire mm | Mesh/Wire mm |
|---|---|
| 2,5 x 2,5 / 1,12 | 26 x 26 / 6,0 |
| 3 x 3 / 1,5 | 28 x 28 / 6,0 |
| 4 x 4 / 2,0 | 30 x 30 / 6,0 |
| 5 x 5 / 2,0 | 30 x 30 / 8,0 |
| 6 x 6 / 2,0 | 30 x 30 / 10,0 |
| 7 x 7 / 2,0 | 32 x 32 / 6,0 |
| 7 x 7 / 3,0 | 32 x 32 / 8,0 |
| 8 x 8 / 2,0 | 35 x 35 / 8,0 |
| 8 x 8 / 3,0 | 35 x 35 / 10,0 |
| 9 x 9 / 2,0 | 38 x 38 / 8,0 |
| 9 x 9 / 3,0 | 38 x 38 / 10,0 |
| 10 x 10 / 2,0 | 40 x 40 / 6,0 |
| 10 x 10 / 3,0 | 40 x 40 / 8,0 |
| 11 x 11 / 3,0 | 40 x 40 / 10,0 |
| 12 x 12 / 3,0 | 42 x 42 / 8,0 |
| 13 x 13 / 3,0 | 42 x 42 / 10,0 |
| 14 x 14 / 4,0 | 45 x 45 / 8,0 |
| 14 x 14 / 5,0 | 45 x 45 / 10,0 |
| 15 x 15 / 4,0 | 50 x 50 / 8,0 |
| 16 x 16 / 4,0 | 50 x 50 / 10,0 |
| 16 x 16 / 6,0 | 55 x 55 / 8,0 |
| 17 x 17 / 5,0 | 55 x 55 / 10,0 |
| 18 x 18 / 4,0 | 60 x 60 / 8,0 |
| 18 x 18 / 5,0 | 60 x 60 / 12,0 |
| 18 x 18 / 6,0 | 65 x 65 / 8,0 |
| 19 x 19 / 5,0 | 65 x 65 / 12,0 |
| 19 x 19 / 6,0 | 70 x 70 / 8,0 |
| 20 x 20 / 4,0 | 70 x 70 / 12,0 |
| 20 x 20 / 5,0 | 75 x 75 / 8,0 |
| 20 x 20 / 6,0 | 75 x 75 / 12,0 |
| 21 x 21 / 6,0 | 80 x 80 / 8,0 |
| 22 x 22 / 4,0 | 80 x 80 / 12,0 |
| 22 x 22 / 5,0 | 90 x 90 / 12,0 |
| 22 x 22 / 6,0 | 100 x 100 / 12,0 |
| 24 x 24 / 6,0 | 110 x 110 / 12,0 |
| 25 x 25 / 6,0 | 120 x 120 / 12,0 |
